Nature's funhouse mirror: understanding asymmetry in the proton

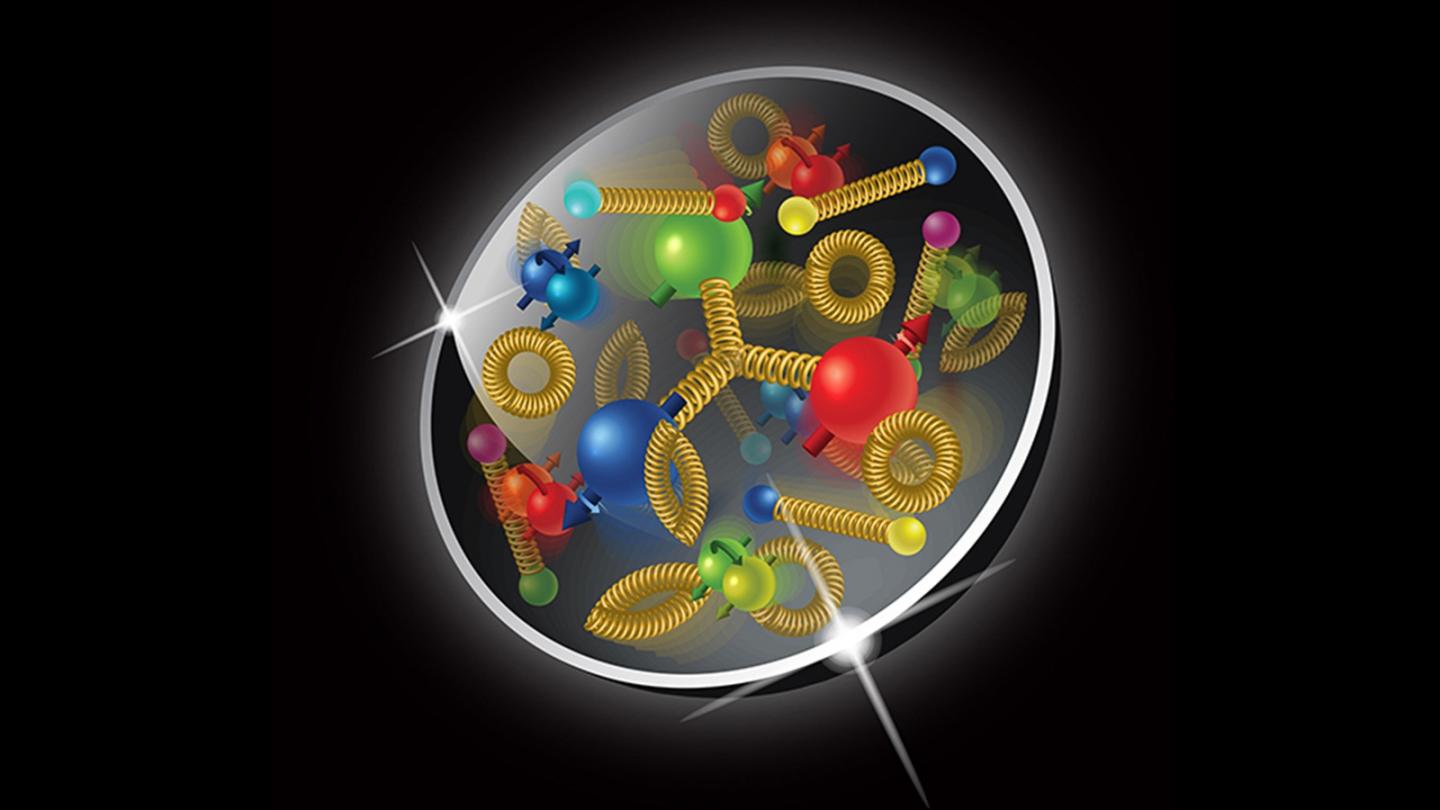

IMAGE: Graphical representation of the proton. The large spheres represent the three valence quarks, the small spheres represent the other quarks that make up the proton, and the springs represent the...

(Image by Brookhaven National Laboratory.)

Asymmetry in the proton confounds physicists, but a new discovery may bring back old theories to explain it.

Symmetry -- displayed in areas ranging from mathematics and art, to living organisms and galaxies -- is an important underlying structure in nature. It characterizes our universe and enables it to be studied and understood.

Because symmetry is such a pervasive theme in nature, physicists are especially intrigued when an object seems like it should be symmetric, but it isn't. When scientists are confronted with these broken symmetries, it's as if they've found an object with a strange reflection in the mirror.

"Nature is leading the way for concepts in older models of the proton to get a second look." -- Argonne physicist Don Geesaman

The proton, a positively charged particle that exists at the center of every atom, displays asymmetry in its makeup. Physicists at the U.S. Department of Energy's (DOE) Argonne National Laboratory and their collaborators recently investigated the intricacies of this known broken symmetry through an experiment conducted at DOE's Fermi National Accelerator Laboratory. The results of the experiment could shift research of the proton by reviving previously discarded theories of its inner workings.

The outcome of this experiment contradicts the conclusion of a study from the late 90s, also performed at Fermilab. Scientists can now revisit theories to describe asymmetry in the proton that were ruled out by the old experiment.

Understanding the properties of the proton helps physicists answer some of the most fundamental questions in all of science, and by investigating the world at the smallest level, scientists are advancing technology we use every day. Studies of the proton have led to the development of proton therapy for cancer treatment, measurement of proton radiation during space travel and even understanding of star formation and the early universe.

"We were able to look at the puzzling dynamics within the proton," said Argonne physicist Don Geesaman, "and through this experiment, nature is leading the way for concepts in older models of the proton to get a second look."

Mismatched matter

Just as shapes can have symmetry, particles can, too. A perfect circle consists of two semicircles of the same size facing opposite directions, and each type of particle in the universe has an antiparticle of the same mass with opposite electric charge.

The building blocks of the proton include particles called quarks, and their antiparticles, called antiquarks. They come in "flavors", such as up, down, anti-up and anti-down. Quarks and antiquarks are bound together inside the proton by a strong nuclear force. The strength of this force can pull pairs of quarks and antiquarks out of nothing, and these pairs exist for a short time before annihilating each other. This "sea" of quarks and antiquarks popping in and out of existence is ever-present inside the proton.

Curiously, at any given time, there are three more quarks than antiquarks: two more up quarks than anti-up quarks, and one more down quark than anti-down quarks. In other words, these mismatched quarks have no antimatter counterparts. This asymmetry is the reason protons are positively charged, allowing atoms -- and therefore all matter -- to exist.

"We still have an incomplete understanding of quarks in a proton and how they give rise to the proton's properties," said Paul Reimer, an Argonne physicist on the study. "The fleeting nature of the quark-antiquark pairs makes their presence in the protons difficult to study, but in this experiment, we detected the annihilations of the antiquarks, which gave us insight into the asymmetry."

The experiment determined that there are always more anti-down quarks in the proton than anti-up quarks, no matter the quarks' momentums. The significance of this result is its contradiction with the conclusion of the Fermilab experiment in the late 90s, which suggested that at high momentums, the proton's asymmetry reverses, meaning the anti-up quarks begin to dominate anti-down quarks.

"We designed the new experiment to look at these high momentums to determine if this change really occurs," said Reimer. "We showed that there is a smooth asymmetry with no flip of the ratio between anti-up and anti-down quarks."

Reconstructing annihilation

To probe the quarks and antiquarks in the proton, the scientists shot beams of protons at targets and studied the aftermath of the particle collisions. Specifically, they studied what happens after a proton from the beam hits a proton in the target.

When protons collide, quarks and antiquarks from the protons annihilate each other. Then, two new fundamental particles called muons come out of the annihilation, acting as the interaction's signature. From these interactions, the scientists determined the ratio of anti-up quarks to anti-down quarks at a range of high momentums.

"We chose to measure muons because they can pass through material better than most of the other collision fragments," said Reimer. In between the targets and their measurement devices, the team placed a five-meter-thick iron wall to stop other particles from passing through and clouding their signals.

When the muons hit the measurement devices at the end of their journey, the scientists reconstructed the quark-antiquark annihilations from the measurements, enabling them to confirm the smooth, consistent ratio of anti-up quarks to anti-down quarks.

A second look

"What we thought we saw in the previous experiment isn't what happens," said Geesaman, who was part of both the present and previous studies. "Why, though? That's the next step."

Theories that were rejected after they contradicted the previous experiment's results now give a great description of the new data, and scientists can revisit them with greater confidence because of this experiment. These theories will inform further experiments on asymmetry in the proton and other particles, adding to our understanding of the theory surrounding quarks.

Clues about the nature of quarks in the proton ultimately lead to better understanding of the atomic nucleus. Understanding the nucleus can demystify properties of the atom and how different chemical elements react with each other. Proton research touches upon fields including chemistry, astronomy, cosmology and biology, leading to advances in medicine, materials science and more.

"You need experiment to lead the thinking and constrain theory, and here, we were looking for nature to give us insight into the proton's dynamics," said Geesaman. "It's an interlacing cycle of experiment and theory that leads to impactful research."

A paper on the study, "The asymmetry of antimatter in the proton", was published in Nature on Feb. 24.

The work was performed by the SeaQuest Collaboration, which is supported in part by DOE's Office of Nuclear Physics and the National Science Foundation.
