WASHINGTON, Aug. 30—To serve remote areas of the world, doctors, nurses and field workers need equipment that is portable, versatile, and relatively inexpensive. Now researchers at the University of California at Los Angeles (UCLA) have built a compact, light-weight, dual-mode microscope that uses holograms instead of lenses. The team describes the new device in a paper published today in the Optical Society's (OSA) open-access journal Biomedical Optics Express.
Their prototype weighs about as much as a medium-sized banana and fits in the palm of a hand. And, since it relies in part on mass-produced consumer electronics, all the materials to make it add up to between $50 and $100 USD.
It also has a two-in-one feature: a transmission mode that can be used to probe relatively large volumes of blood or water, and a reflection mode that can image denser, opaque samples. The spatial resolution for both modes is less than two micrometers—comparable to that achieved by bulkier microscopes with low- to medium-power lenses.

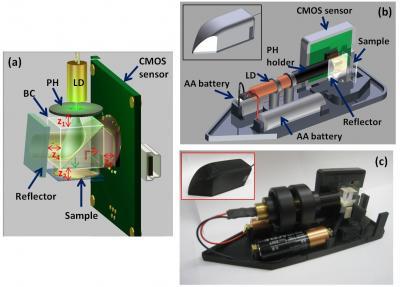

In reflection mode, the holographic microscope can create images of dense, opaque materials, such as water filters. (a-b) Laser light from a laser diode (LD in the diagrams) is projected through a pin hole (PH) and then split into two beams by a beam cube (labeled BC). One beam of light hits the sample; the other does not. The beams are then reunited to form an interference pattern, which is recorded on a CMOS image sensor. (c) This photograph shows the microscope in reflection mode, with its cover removed. (The inset shows what the microscope looks like with its cover on.) The device weighs about 200 grams and is 15 cm long, 5.5 cm high, and 5 cm wide.
(Photo Credit: Ozcan BioPhotonics Group at UCLA/Biomedical Optics Express.)
"This is the first demonstration of essentially a hand-held version of a microscope that can do dual-mode imaging within a very compact and cost-effective form," says Aydogan Ozcan, an associate professor of electrical engineering and bioengineering at UCLA and senior author of the paper.
With just a small amount of training, doctors could use devices like these to improve health care in remote areas of the world with little access to diagnostic equipment, Ozcan says. The handheld microscope could help ensure water quality, test patients' blood for harmful bacteria, and even be used for semen-quality monitoring on animal farms.
It could also prove useful in health crises such as the recent outbreak of E. coli in Europe.
"It's a very challenging task to detect E. coli in low concentrations in water and food," Ozcan says. "This microscope could be part of a solution for field investigation of water, or food, or maybe pathogens in blood."
Part of the device's success is the weight it shed when researchers got rid of the bulkier, heavier, more expensive pieces that most microscopes rely on for collecting and focusing light: the lenses. Instead of lenses, this microscope uses holograms.
Holograms are formed when light bouncing off (or passing through) a three-dimensional object is made to interfere with a "reference beam," or light that has not hit the object. Consider this analogy: drop a stone into a still pond and the ripples will move outward in a circle. Drop two stones and the circular ripples will interfere with each other, making a new pattern of crests and troughs. A person (or computer) analyzing the interference pattern created by those two stones could trace the source back to the stones and recreate what had happened to make the waves.
The UCLA team's device uses a similar principle to recreate images from interfering light waves.

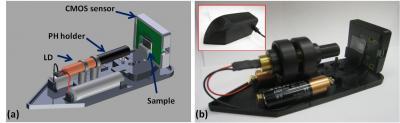

In transmission mode, the holographic microscope has a wider field of view than in reflection mode. While in this orientation, the device can be used to search for pathogens in large volumes of see-through materials, such as blood or water. (a) The beam cube, which splits the laser into two beams in reflection mode, is removed. Laser light from a laser diode (LD) is projected through a pin hole (PH) and passes directly through a see-through sample. Light that hits individual cells or particles in the sample is scattered; this scattered light forms an interference pattern with light that has not encountered any obstacles on its path through the sample. The interference pattern formed by the encounter between these two sources of light is then recorded on a CMOS image sensor and sent to a computer for analysis. (b) This photograph shows the microscope in transmission mode, with its cover removed. (The inset shows what the microscope looks like with its cover on.)
(Photo Credit: Ozcan BioPhotonics Group at UCLA/Biomedical Optics Express.)
An inexpensive light source is divided into two beams —one that interacts with microscopic cells or particles in the sample, and the other that does not. The beams then pass to an adjacent sensor chip, where their interference pattern is recorded.
Software then analyzes that pattern and recreates the path taken by the light that passed through or bounced off of the objects being imaged.
Each component of the device is fairly inexpensive, Ozcan says. The laser light could come from a $5 laser pointer. The sensor chip that collects that light is the same as the ones in the backs of iPhones and Blackberrys and costs less than $15 per chip. And the whole image-collecting system runs on two AA batteries.
Where the researchers have reduced weight and expense in doing away with lenses, they have added the power of the cloud. The microscope captures raw data; but a computer is required to reconstruct the images. Workers in the field could use their laptops to process the information or send it over the Internet or mobile phone networks to a remote server. Mobile phones could also have sufficient processing power to do the analysis on the spot.
Essentially, Ozcan says, "we are replacing an expensive and bulky, heavy component with computer codes."
The next steps for Ozcan's team include commercializing the device. Ozcan says he has founded a company that is developing this technology, trying to make a version of the microscopes that can be manufactured and sold to healthcare workers and hobbyists.
"Global health is a big field that requires better diagnostic tools, because resource-poor countries don't have the infrastructure for conducting essentially accurate diagnostic tests," Ozcan says. "There are so many problems that innovative solutions [like this microscope] would impact."

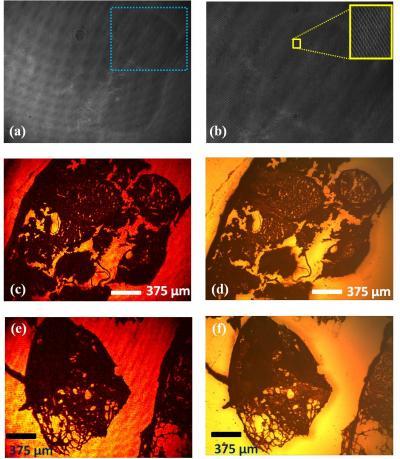

These pictures compare a piece of skin tissue imaged with the holographic microscope to the same piece of tissue imaged with a conventional microscope. The top two images (a-b) show the raw, unprocessed hologram -- the light interference pattern -- that is collected by the microscopes sensor in reflection mode; the second image (b) is a zoomed-in version of the first (a). A computer-reconstructed image of this skin tissue is at the bottom left (c). The bottom right (d) shows a picture of the same specimen taken with a conventional, objective-lens microscope, for comparison.
(Photo Credit: Ozcan BioPhotonics Group at UCLA/Biomedical Optics Express.)
